May., 2021-English www.winstar.com.tw

E-Newsletter - Winstar Display
Issue No. 147

Contents
1) 2.7" WEP012864Q-CTP Touch OLED with PCB & Frame
2) 3.12" COF OLED WEN025664B-CTP (PCB+Frame) with CTP Touch
3) 4.3" Smart Display CAN Series TFT

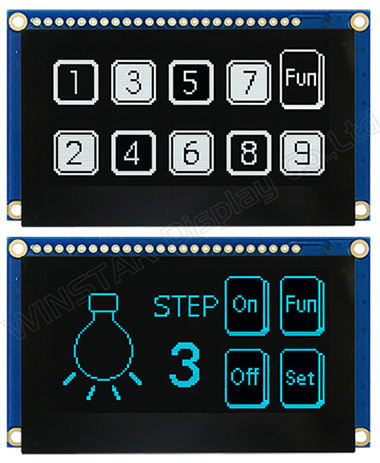

2.7" WEP012864Q-CTP Touch OLED with PCB & Frame

WEP012864Q-CTP model is a COG Graphic OLED with Capacitive Touch Panel, diagonal size 2.7 inch, made of 128x64pixels. This OLED module is built-in with SSD1309 IC; it supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface, supply voltage for logic 3V, the display with 50% Check board current is 175mA @3.0V VDD (typical value), driving duty 1/64. This model is having Capacitive Touch Panel on module; it is built-in with GT911 IC which supports I2C interface, one detect point for CTP, normal glare surface glass. The module is having PCB board on module which is suitable for customers to use wire connection; customers do not need to develop extra PCB for their applications. Also, we integrated VCC circuit on PCB to make it easier for customers to use.

WEP012864Q-CTP model is a COG OLED display with a PCB on module. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. This OLED module is suitable for smart home application, medical device, industrial control, etc. WEP012864Q-CTP model can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

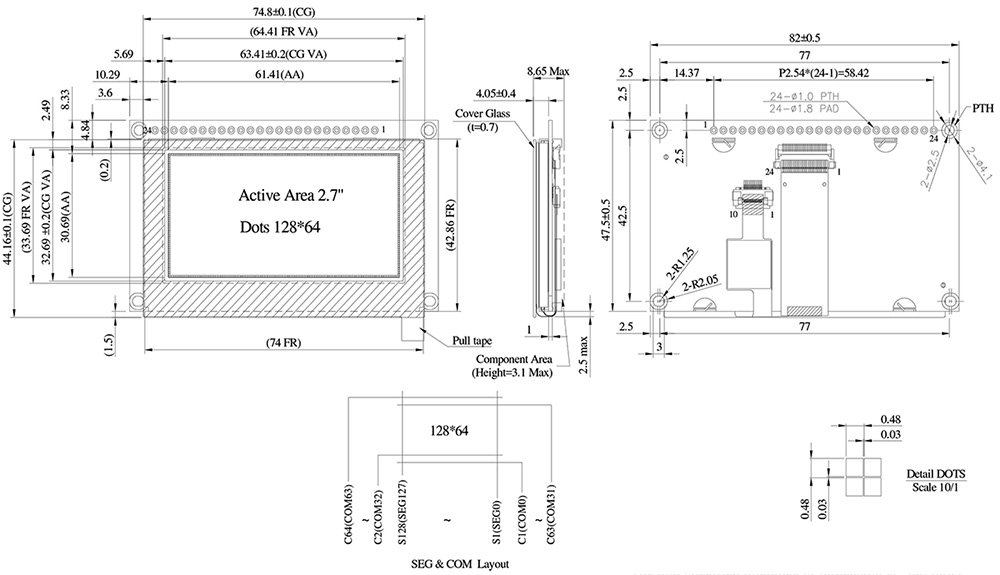

WEP012864Q-CTP Dimension
Dot Matrix 128 × 64 dots
Module dimension 82.0 × 47.5 × 8.65 Max. mm
Active Area 61.41 × 30.69 mm
Pixel Size 0.45 × 0.45 mm
Pixel Pitch 0.48 × 0.48 mm
Display Mode Passive Matrix
Display Color White/Yellow/Sky Blue/Green
Drive Duty 1/64 Duty
OLED IC SSD1309
OLED Interface 6800,8080,4-Wire SPI,I2C
Size 2.7 inch
CTP IC GT911
Detect Point 1
CTP Interface I2C
Surface Normal Glare
WEP012864Q-CTP
WEP012864Q-CTP



Link to WEP012864Q-CTP web page



TOP

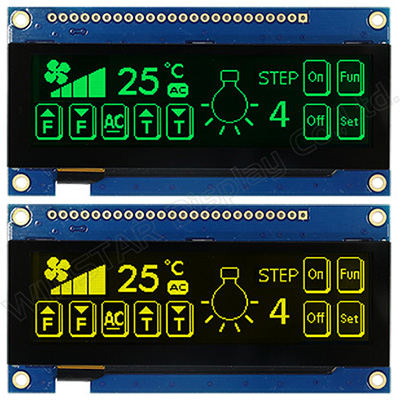

3.12" COF OLED WEN025664B-CTP (PCB+Frame) with CTP Touch

WEN025664B-CTP model is a COF Graphic OLED with Capacitive Touch, diagonal size 3.12 inch, made of resolution 256x64 dots. This OLED module is built-in with SSD1322 COF IC; it supports 6800/8080 8-bit parallel, and 4-Wire SPI interface, supports 16 (4-bits) gray scale, supply voltage for logic 3V, the display with 50% Check board current is 150mA @3.0V VDD (typical value), driving duty 1/64. This model is having Capacitive Touch Panel on module; it is built-in with FT6336U IC which supports I2C interface, one detect point for CTP, normal glare surface glass. The module is having PCB on module which is suitable for customers to use wire connection; customers do not need to develop extra PCB for their applications. Also, we integrated VCC circuit on PCB to make it easier for customers to use.

WEN0256464B-CTP model is a COF OLED display with a PCB on module. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. This OLED module is suitable for smart home application, medical device, industrial control, etc. WEN025664B-CTP model can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

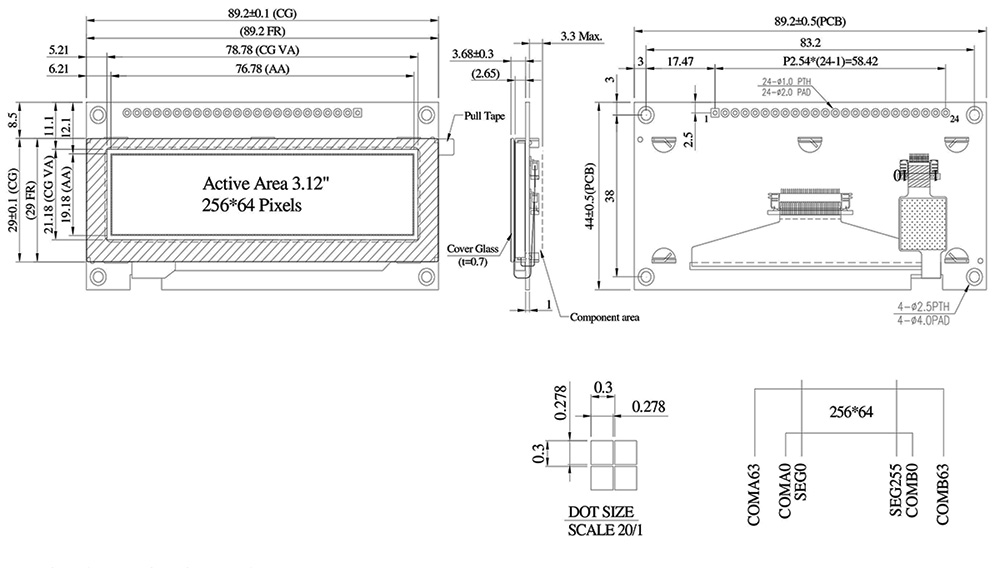

WEN025664B-CTP Dimension
Dot Matrix 256 × 64 Dots
Module dimension 89.2 × 44.0 × 7.98 mm
Active Area 76.78 × 19.18 mm
Pixel Size 0.278 × 0.278 mm
Pixel Pitch 0.3 × 0.3 mm
Display Mode Passive Matrix
Display Color White/Yellow/Sky Blue /Green
Drive Duty 1/64 Duty
Gray Scale 4 bits
OLED IC SSD1322 (COF)
OLED Interface 6800, 8080, SPI
Size 3.12 inch
CTP IC FT6336U
Detect Point 1
CTP Interface I2C
Surface Normal Glare
WEN025664B-CTP


WEN025664B-CTP

Link to WEN025664B-CTP web page



TOP





4.3" Smart Display CAN Series TFT

WL0F00043 model is a 4.3" Smart Display CAN series TFT display which is defined as a slave device, that is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects. WL0F00043 model is integrated with a standard 4.3 inch IPS TFT module WF43WTWAEDNG0 and a 4-layers PCBA with built-in firmware code which is developed by Winstar RD team. This 4.3" Smart Display CAN series TFT is an easy-to-use product which allows customers to develop projects rapidly in cost-effective way. This 4.3” Smart Display can use computer with USB2CAN dongle or Raspberry Pi interface (PiCAN2) as HOST platform. Winstar already developed a Windows IDE for Smart Display GUI design. Winstar GUI builder software is designed for customers to simulate their GUI design in advance by using the drag-and-drop Widget preview function; furthermore, customers can create their ideal GUI by themselves by using this software. Winstar GUI builder software is supporting Windows system only; it can fulfill What You See Is What You Get (WYSIWYG).

Try before you buy! Contact us to download Winstar GUI Builder Software.

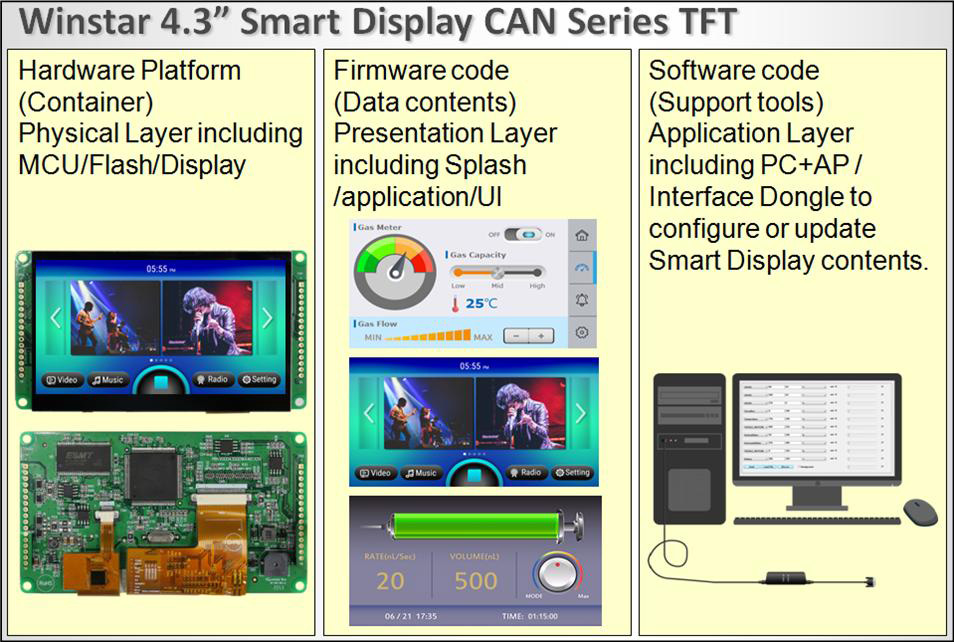

Winstar Smart Display CAN Series offers an out-of-the-box CANopen development experience that will lower your development costs and speed your time-to-market expectations. The CanTFT comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will customize a new set of UI objects to you. Below are what included in our Smart Display Can Series TFT:

Winstar Smart Display Can Series is really a “smart” choice for customers. There are many important  features and functions for this new released 4.3” smart display CAN TFT as below:

►DC 5V working voltage
►4.3” IPS TFT WF43WTWAEDNG0
►Supports Projected Capacitive touch screen (PCAP)
►Power-On Self-Test & Splash screen.
►CAN bus Interface.
►Supports CANopen protocol, default baud rate at 250KB.
►Built in flash memory, store the font and Object Dictionary Data.
►Long transmission distance.
►Strong anti-interference ability.
►Built-in Buzzer.
►Supports Multi-master
►Operating temperature -30℃~80℃
►Design the UI without writing a line of code by Winstar GUI builder! (►Link to GUI Builder Introduction)

We provide below three kinds of demo scenarios for optional. For more details, please check our website or contact Winstar sales persons.


WL0F00043000WGAAASB00

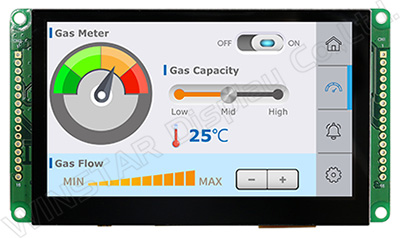

WL0F00043000WGAAASB00 (Industrial Application)
Link to Winstar product web page

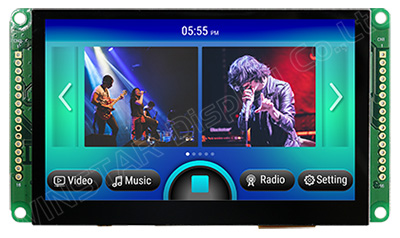

WL0F00043000WGAAASC00 WL0F00043000WGAAASC00 (Vehicle Application)
Link to Winstar product web page

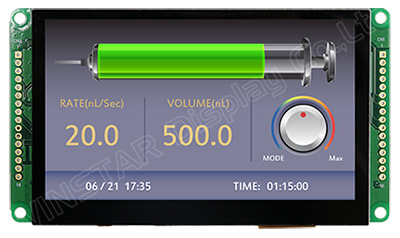

WL0F00043000WGAAASD00 WL0F00043000WGAAASD00 (Medical Application)
Link to Winstar product web page

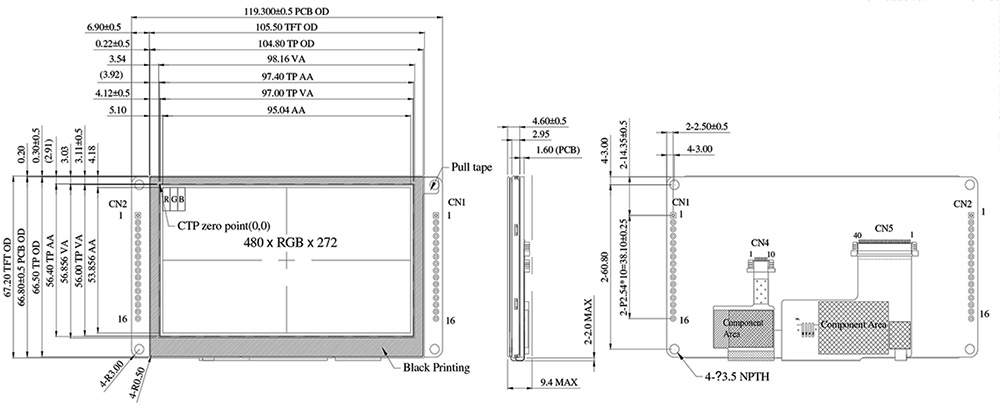

Below is the 4.3" CAN Series Smart Display mechanical data and TFT-LCD module information for reference

Mechanical Data:

Item Standard Value Unit
LCD panel 105.5(W) × 67.2(H) × 4.6(D) mm
PCB 119.3(W) × 67.2(H) × 1.6 mm
Housing outline NA mm


TFT Module Information: WF43WTWAEDNG0:

Item Standard Value Unit
Operating voltage 5 VDC
 Communication Interface CAN bus differential ± 3.3 Vpp
LCD display size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dot
Module dimension 105.5(W) × 67.2(H) × 4.6(D) mm
Active area 95.04(W) × 53.856 (H) mm
Dot pitch 0.066 (W) × 0.198(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80 (IPS TFT)
Aspect Ratio 16:9
Touch Panel With CTP touch panel
Surface Glare

WL0F00043000WGAAASA00
