Aug., 2020-English www.winstar.com.tw

E-Newsletter Jan., 2020 - Winstar Display



Issue No. 138

Contents
1) 4" Square IPS TFT MIPI Interface WF40ETWAA6MNN0
2) High Brightness 4" Square IPS TFT MIPI WF40ESWAA6MNN0
3) 5 inch LVDS IPS TFT-LCD WF50FTWAGLNN0
4) 3.12 inch COF OLED WEX025664B with CTP Touch Screen
5) 1.54 inch COG OLED WEO012864A with CTP Touch Screen

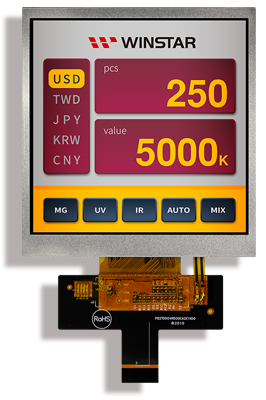

4" Square IPS TFT MIPI Interface WF40ETWAA6MNN0

WF40ETWAA6MNN0 is a 4 inch Square IPS TFT-LCD display module; made of resolution 480 x 480 pixels. WF40E module supports MIPI DSI Serial interface (2 lanes), it featured with IPS panel which is having the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), brightness 500 nits (typical value), glare surface panel, aspect ration 1:1.

This 4 inch MIPI LCD display integrated driver IC ST7701S on module, the interface supply voltage range from 2.5V to 3.6V, typical value 2.8V. WF40E module can be operating at temperatures from -30℃ to +80℃; its storage temperatures range from -30℃ to +80℃.

WF40ETWAA6MNN0 Dimension
Size 4 inch
Dot Matrix 480×3(RGB)×480 dots
Module dimension 78.8(H)×82.95 (W)×4.77 mm
Active area 71.856(H)×70.176(V) mm
Dot pitch 0.1497(H)×0.1462(V) mm
LCD type TFT, Normally Black, Transmissive
View Direction  80/80/80/80
Aspect Ratio 1:1
Interface 2-Lanes MIPI DSI
Driver IC ST7701S
Backlight Type LED, Normally White
Touch Panel RTP/CTP under development
Surface Glare
WF40ETWAA6MNN0

WF40ETWAA6MNN0

Link to Winstar WF40ETWAA6MNN0 web page



TOP

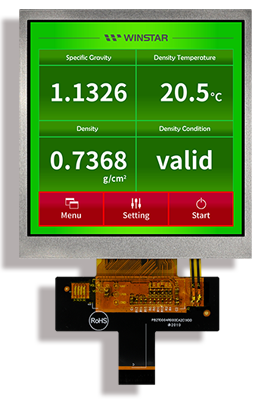

High Brightness 4" Square IPS TFT MIPI WF40ESWAA6MNN0

WF40ESWAA6MNN0 is a High Brightness 4 inch Square IPS TFT-LCD module; made of resolution 480 x 480 pixels. WF40E module supports MIPI DSI Serial interface (2 lanes), it featured with IPS panel which is having the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), high brightness 1000 nits (typical value), glare surface panel, aspect Ratio 1:1.

WF40ESWAA6MNN0 module is integrated driver IC ST7701S on module, the interface supply voltage range from 2.5V to 3.6V, typical value 2.8V. WF40E module can be operating at temperatures from -30℃ to +80℃; its storage temperatures range from -30℃ to +80℃.

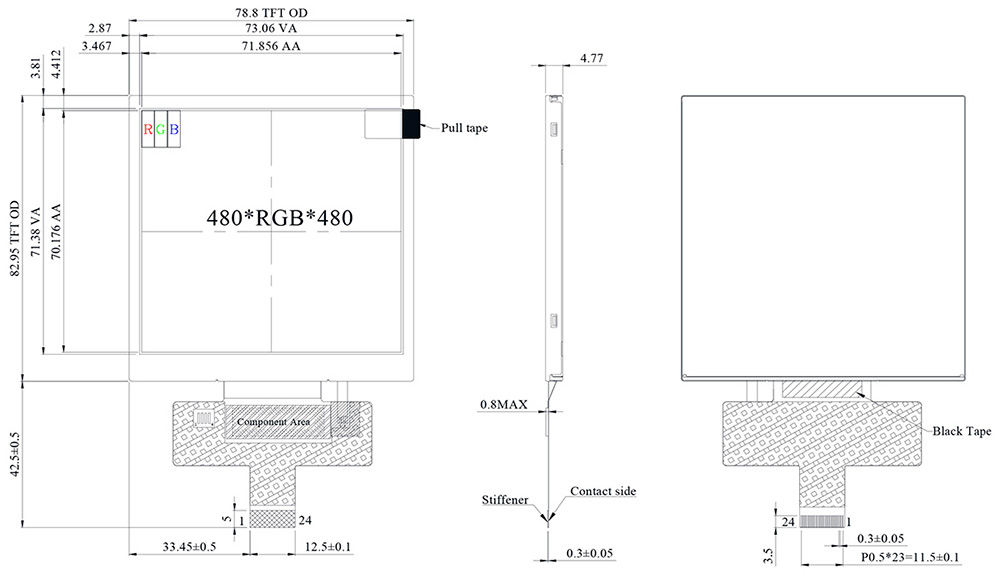

WF40ESWAA6MNN0 Dimension
Size 4 inch
Dot Matrix 480×3(RGB)×480 dots
Module dimension 78.8(H)×82.95(W)×4.77 mm
Active area 71.856(H)×70.176 (V) mm
Dot pitch 0.1497(H)×0.1462(V) mm
LCD type TFT, Normally Black, Transmissive
View Direction  80/80/80/80
Aspect Ratio 1:1
Interface 2-Lanes MIPI DSI
Driver IC ST7701S
Backlight Type LED, Normally White
Touch Panel RTP/CTP under development
Surface Glare
WF40ESWAA6MNN0

WF40ESWAA6MNN0

Link to Winstar WF40ESWAA6MNN0 web page



TOP

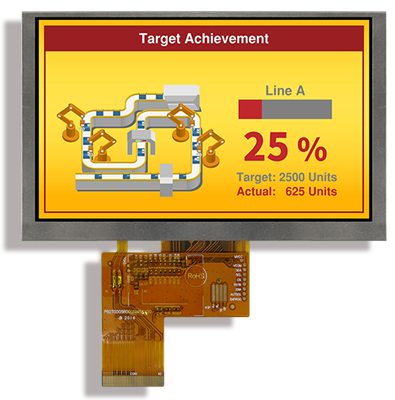

5 inch LVDS IPS TFT-LCD WF50FTWAGLNN0

WF50FTWAGLNN0 is a 5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels. WF50FTWAGLNN0 module is built in with ST7262 driver IC; this module supports LVDS interface (Default VESA), contrast ratio 1,000:1 (typical value), brightness 500 nits (typical value).  If customers require RGB interface, please choose WF50FTWAGDNN0.

This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The power voltage of WF50F model is from 3.1 to 3.6V, typical value 3.3V, aspect ratio 16:9, normally black, transmissive LCD type, anti-glare surface glass. It can be operating at temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃. WF50F have Resistive Touch Panel and Projected Capacitive Touch Panel for optional.

WF50FTWAGLNN0 Dimension
Size 5 inch
Dot Matrix 800×3(RGB)×480 dots
Module dimension 120.7(W)×75.8(H)×2.8mm
Active area 108(W)×64.8(H) mm
Dot pitch 0.135(W)×0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction  80/80/80/80
Aspect Ratio 16:9
Driver IC  ST7262 or equivalent
Interface LVDS
Backlight Type LED, Normally White
Touch Panel RTP/PCAP options
Surface Anti-Glare
WF50FTWAGLNN0

WF50FTWAGLNN0

Link to Winstar WF50FTWAGLNN0 web page



TOP

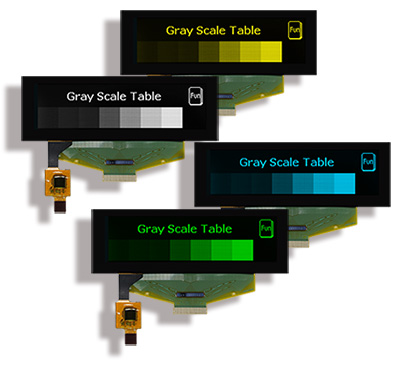

3.12 inch COF OLED WEX025664B with CTP Touch Screen

WEX025664B-CTP is a 3.12 inch COF structure Graphic OLED display with Capacitive Touch Panel on module; which is made of resolution 256x64 dots. This module is built in with COF SSD1322 IC, it can be communicated via 6800/8080 8-bit parallel and SPI interface; it supports 4-bits grayscale, supply voltage for logic is from 2.8V to 3.3V, typical value 3.0V, supply voltage for display 14.5V, 1/64 driving duty. This WEX025664B-CTP model adopted FT6336U as touch panel IC on module, which supports I2C interface, one Detect Point for CTP. Please note, this WEX025664B-CTP module is metal frame optional.

This 3.12" WEX025664B with CTP model is ideal for smart home applications, intelligent technology devices, meter devices, industrial control system, medical instrument, etc. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

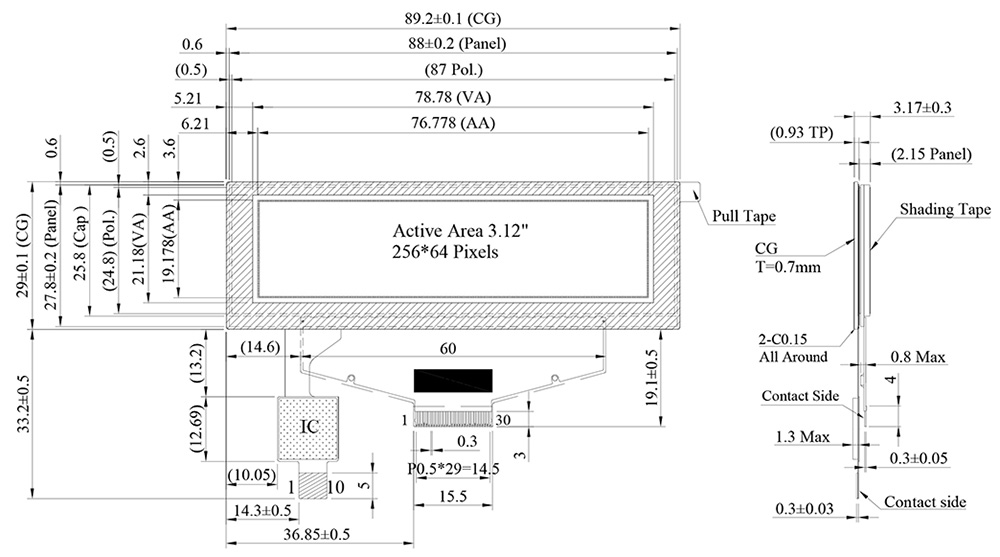

WEX025664B-CTP Dimension
Dot Matrix 256×64 dots
Module dimension 89.2×29.0×3.17 mm
Active Area 76.778×19.178 mm
Pixel Size 0.278×0.278 mm
Pixel Pitch 0.3×0.3 mm
Display Mode Passive Matrix OLED
Display Color Monochrome (White / Yellow / Sky Blue / Green)
Drive Duty 1/64 Duty
Gray Scale 4 bits
OLED IC SSD1322 (COF)
OLED Interface 6800, 8080, SPI
Size 3.12 inch
CTP IC FT6336U
Detect Point 1
CTP Interface I2C
Surface Glare
WEX025664B-CTP

WEX025664B

Link to Winstar WEX025664B-CTP web page



TOP





1.54 inch COG OLED WEO012864A with CTP Touch Screen

WEO012864A-CTP is a 1.54 inch COG structure Graphic OLED display with Capacitive Touch Panel on module; which is made of resolution 128x64 dots. This module is built in with SSD1309 IC, it can be communicated via 6800/8080 8-bit parallel, 4-wire SPI and I2C interface; supply voltage for logic is from 2.8V to 3.3V, typical value 3.0V, supply voltage for display 12.5V, 1/64 driving duty. This WEO012864A-CTP model adopted MSG22S as touch panel IC on module, which supports I2C interface, one Detect Point for CTP.

WEO012864A with CTP model is ideal for smart home applications, intelligent technology devices, meter devices, industrial control system, medical instrument, etc. This module can be operating at temperatures from -10℃ to +60℃; its storage temperatures range from -20℃ to +70℃.

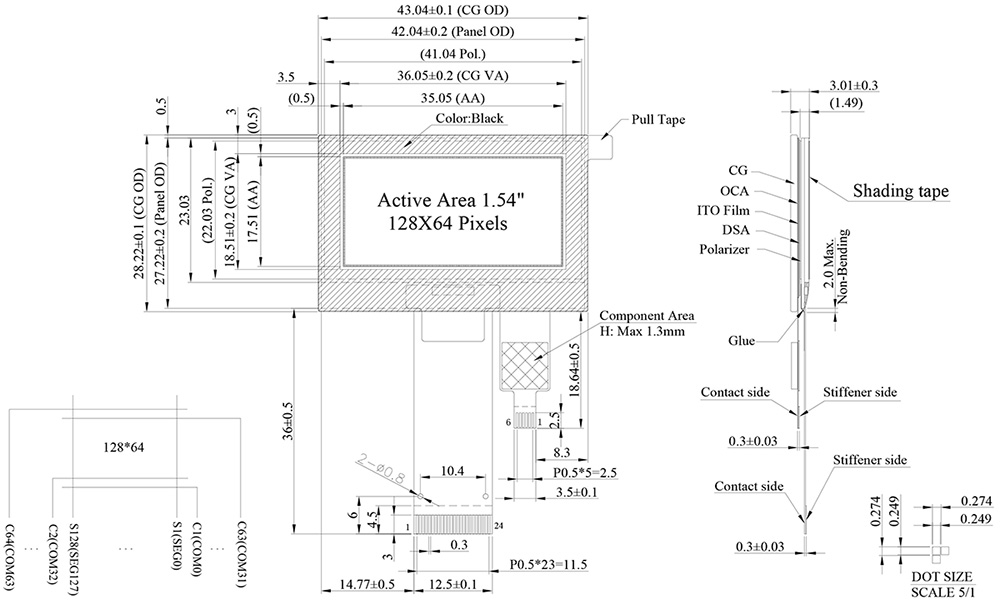

WEO012864A-CTP Dimension
Dot Matrix 128×64
Module dimension 43.04×28.22×3.01 mm
Active Area 35.05×17.51 mm
Pixel Size 0.249×0.249 mm
Pixel Pitch 0.274×0.274 mm
Display Mode Passive Matrix OLED
Display Color Monochrome (White / Yellow / Green)
Drive Duty 1/64 Duty
OLED IC SSD1309
OLED Interface 6800,8080,4-wire SPI,I2C
Size 1.54 inch
CTP IC MSG22S
Detect Point 1
CTP Interface I2C
Surface Normal Glare
WEO012864A-CTP

WEO012864A-CTP

Link to Winstar WEO012864A-CTP web page



TOP
