Pantalla OLED Gráfico 2,23", 128x32, SSD1305Z, COG
Modelo Nº WEP012832A
►Tipo : Gráfico
►Estructura : COG + marco + PCB
►Tamaño : 2.23 pulgada
►Matriz de puntos 128 x 32
►IC:SSD1305
►Fuente de alimentación de 3V
►1/32 duty
►Interfaz : 6800, 8080, SPI, I2C
►Color de la pantalla: Blanco / Amarillo / Azul
Descripción

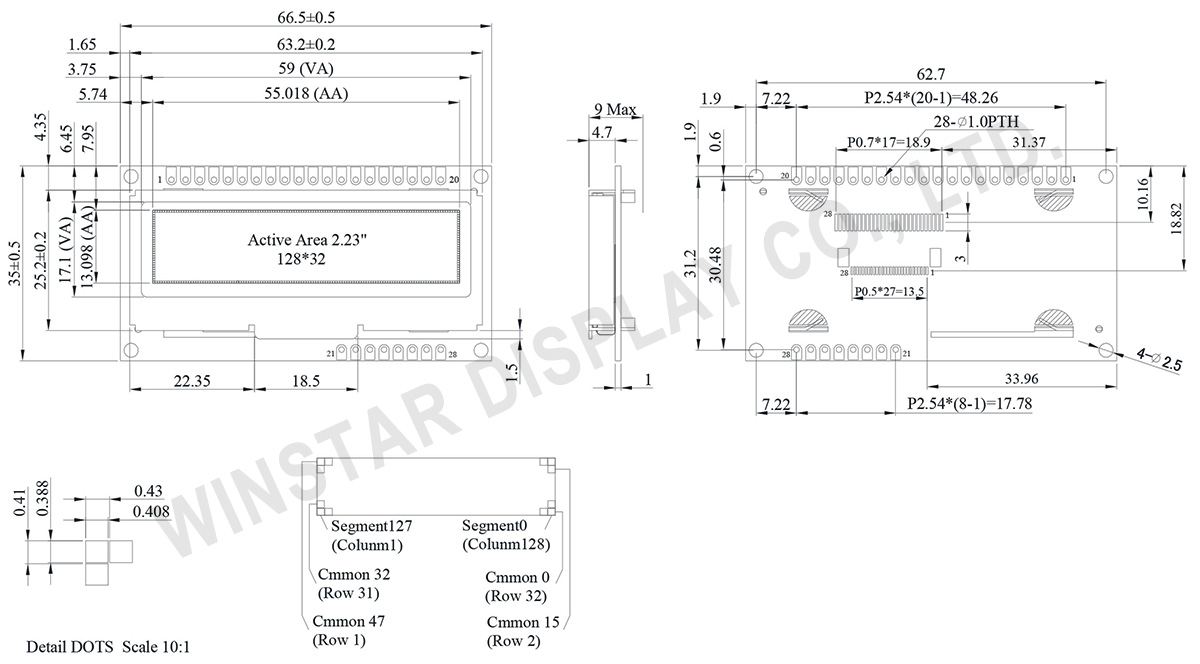

DIBUJO
Data source ref: WEP012832AWPP3N00000
ESPECIFICACIONES
Función interfaz Pin
No. | Símbolo | Función | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | VSS | Ground. | |||||||||||||||
2 | VDD | Power supply pin for core logic operation. | |||||||||||||||
3 | V0 | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. | |||||||||||||||
4 | D/C# | This is Data/Command control pin. When it is pulled HIGH (i.e. connect to VDDIO), the data at D[7:0] is treated as data. When it is pulled LOW, the data at D[7:0] will be transferred to the command register. In I2C mode, this pin acts as SA0 for slave address selection. |
|||||||||||||||
5 | R/W# | This is read / write control input pin connecting to the MCU interface. When interfacing to a 6800-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH (i.e. connect to VDDIO) and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial interface is selected, this pin must be connected to VSS. |
|||||||||||||||
6 | E/RD# | When interfacing to a 6800-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH (i.e. connect to VDDIO) and the chip is selected. When connecting to an 8080-microprocessor, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial interface is selected, this pin must be connected to VSS. |
|||||||||||||||
7~14 | DB0~DB7 | These are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be left opened. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL. |
|||||||||||||||
15 | CS# | This pin is the chip select input. (active LOW) | |||||||||||||||
16 | RES# | This pin is reset signal input. When the pin is LOW, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDDIO) during normal operation. |
|||||||||||||||
17,18 | BS2,BS1 | Communicating Protocol Select. These pins are MCU interface selection input. See the following table:
|
|||||||||||||||
19 | N.C. | No connection. | |||||||||||||||
20 | FG(GND) | Ground. | |||||||||||||||
21~25 | N.C. | No connection. | |||||||||||||||
26 | VSS | Ground. | |||||||||||||||
27 | BSW | Control the Piezoelectric Buzzer. | |||||||||||||||
28 | MSW | Control the BLDC Vibration Motor. |
Datos mecánicos
Elemento | Dimensión | Unidad |
---|---|---|
Matriz de puntos | 128 × 32 | Dots |
Dimensión del módulo | 66.5 × 35.0 × 9.0(Max) | mm |
zona activa | 55.018 × 13.098 | mm |
Tamaño del punto | 0.408 × 0.388 | mm |
Distancia entre puntos | 0.43 × 0.41 | mm |
Modo de visualización | Matriz pasiva | |
Color de la pantalla | Monocromos | |
Drive Duty | 1/32 Duty | |
IC | SSD1305 | |
Buzzer | OBO-11241SB | |
Vibration Motor | W0625AB001F | |
Interfaz | 6800, 8080, SPI, I2C | |
Tamaño | 2.23 pulgada |
Características electrónicas
Elemento | Símbolo | Condición | Valor mín. | Valor típico | Valor máx. | Unidad |
---|---|---|---|---|---|---|
Supply Voltage for Logic | VDD | - | 3.0 | 3.3 | 3.5 | V |
Input High Volt. | VIH | - | 0.8×VDD | - | VDD | V |
Input Low Volt. | VIL | - | 0 | - | 0.2×VDD | V |
Output High Volt. | VOH | IOUT = 100uA, 3.3MHz | 0.9×VDD | - | VDD | V |
Output Low Volt. | VOL | IOUT = 100uA, 3.3MHz | 0 | - | 0.1×VDD | V |
Supply Voltage for Buzzer | BSW | 50% square | 0.8×VDD | - | VDD | V |
Supply Voltage for Vibration Motor | MSW | - | 2.7 | - | 3.3 | V |
Operating Current at Display with 50% Check Board | IDD | VDD=3.3V | - | 90 | 120 | mA |
Valores nominales máximos absolutos
Parameter | Símbolo | Valor mín. | Valor máx. | Unidad |
---|---|---|---|---|
Supply Voltage for Logic | VDD | -0.3 | 4.0 | V |
Operating Temperature | TOP | -40 | +80 | °C |
Storage Temperature | TSTG | -40 | +85 | °C |
