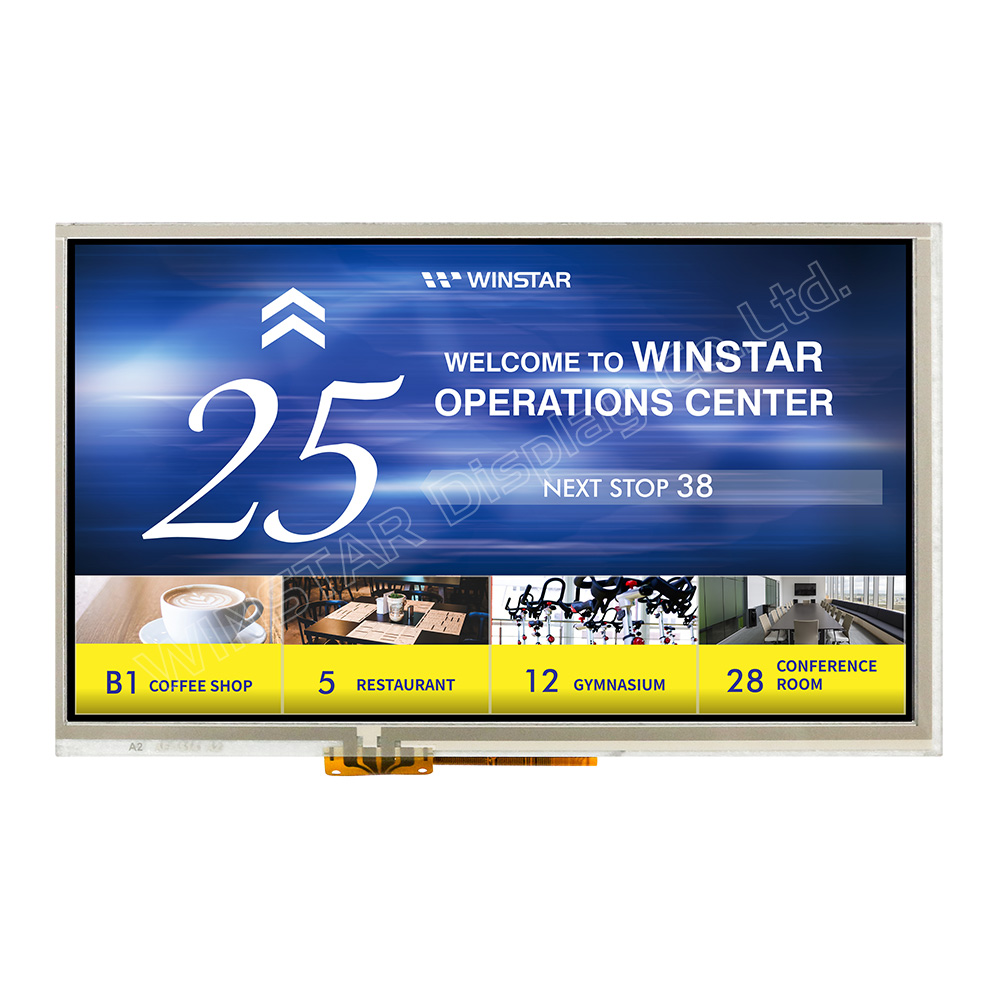

WF70A2TIFGDHTV is a 7 inch Resistive Touch Panel TFT-LCD module which supports HDMI (Only DVI) signal; its resolution is made of WVGA 800x480 dots. WF70A2TIFGDHTV comes with a control board which supports HDMI (Only DVI) signal interface and a 40-pin GPIO connector on board; it is designed to make Raspberry Pi usage become easily. This display has a USB interface Resistive Touch Screen overlay on TFT panel. We designed a connector (P/N WWHDMI-00#) and USB cable (P/N OTP1XXXXXXXXXXXX0155) for option, the customers can use it to connect WF70A2TIFGDHTV module with your Raspberry Pi directly. Please note, this part no. WF70A2TIFGDHTV does not include any HDMI connector or USB cable.
WF70A2TIFGDHTV is built in with TFP401 Controller IC convert signal to support HDMI (Only DVI) signal interface. The supply voltage for LCM (VDD) is typical value 5V. It is featured with Anti-Glare surface glass, view direction 12 o'clock, gray scale inversion 6 o'clock, aspect ratio 16:9.
Part No. WWHDMI-00# (Optional component)
▪Support HDMI connector (Only DVI Signal) for TFT module and Raspberry Pi
WF70A2TIFGDHTV#: with a 40-pin header connector on board, supports up to Raspberry Pi 3B+ (contain Pi 4B) version. If customers choose Raspberry Pi 4 version, please note the interface is Micro HDMI; customers need to use the Micro HDMI to HDMI cable for Winstar this series products.
WF70A2TIFGDHT0#: without connector on board(do not support Raspberry Pi).
SPECIFICATIONS
General Specifications
Item |
Dimension |
Unit |
Size |
7.0 |
inch |
Dot Matrix |
800 × RGB × 480(TFT) |
dots |

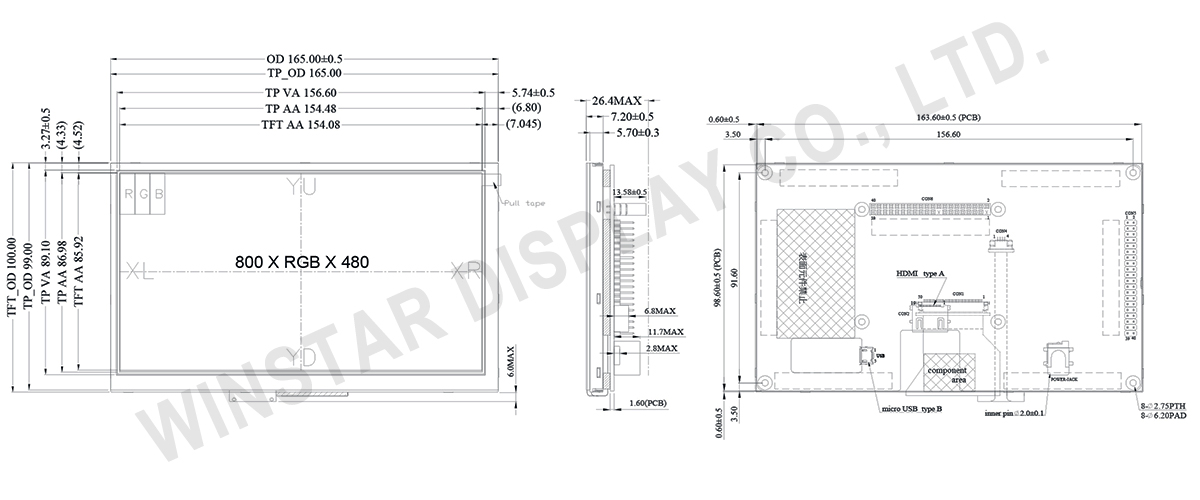

Module dimension |
165.0(W) × 100(H) × 26.4(D) |
mm |
Active area |
154.08 × 85.92 |
mm |
Dot pitch |
0.0642 × 0.179 |
mm |
LCD type |
TFT, Normally White, Transmissive |
View Direction |
12 o'clock |
Gray Scale Inversion Direction |
6 o'clock |
Aspect Ratio |
16:9 |
Controller IC |
TFP401 or equivalent |
Backlight Type |
LED, Normally White |
TFT Interface |
Support HDMI Connector (Only DVI Signal) |
RTP Interface |
USB |
Touch Screen |
Resistive touch screen (RTP) |
Surface |
Anti-Glare |
Absolute Maximum Ratings
Item |
Symbol |
Min |
Typ |
Max |
Unit |
Operating Temperature |
TOP |
-20 |
- |
+70 |
℃ |
Storage Temperature |
TST |
-30 |
- |
+80 |
℃ |
Electrical Characteristics
Item |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
Supply Voltage For LCM |
VDD |
- |
4.9 |
5 |
5.1 |
V |
Supply Current For LCM |
IDD |
- |
- |
760 |
1140 |
mA |
LED life time |
- |
- |
- |
50,000 |
- |
Hr |
Interface

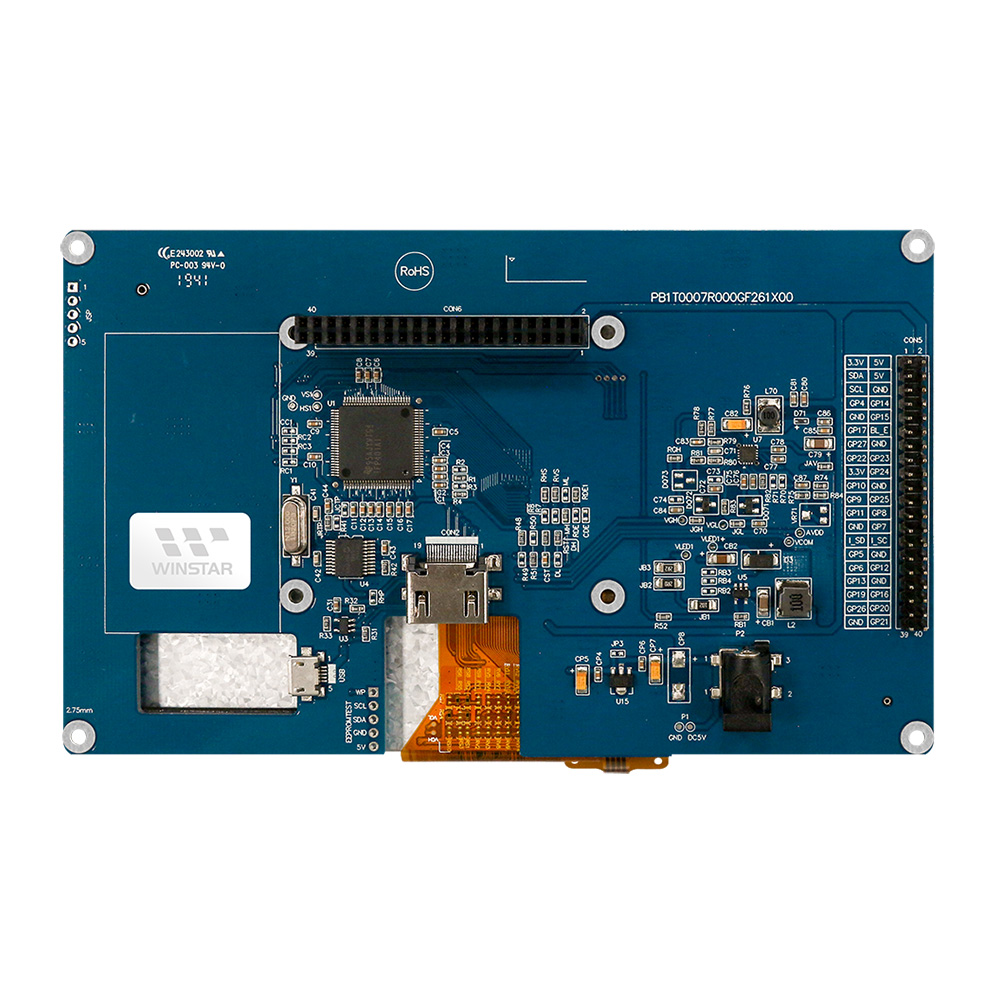

1. LCM PIN Definition(CON6)
Pin |
Symbol |
Function |
1 |
NC |
No connection |
2 |
5V |
Raspberry Pi:Power 5V |
3 |
GPIO02 |
Raspberry Pi:GPIO02 |
4 |
5V |
Raspberry Pi:Power 5V |
5 |
GPIO03 |
Raspberry Pi:GPIO03 |
6 |
GND |
Raspberry Pi:GND |
7 |
GPIO04 |
Raspberry Pi:GPIO04 |
8 |
GPIO14 |
Raspberry Pi:GPIO14 |
9 |
GND |
Raspberry Pi:GND |
10 |
GPIO15 |
Raspberry Pi:GPIO15 |
11 |
GPIO17 |
Raspberry Pi:GPIO17 |
12 |
GPIO18 |
Raspberry Pi:GPIO18 (Backlight Enable) |
13 |
GPIO27 |
Raspberry Pi:GPIO27 |
14 |
GND |
Raspberry Pi:GND |
15 |
GPIO22 |
Raspberry Pi:GPIO22 |
16 |
GPIO23 |
Raspberry Pi:GPIO23 |
17 |
NC |
No connection |
18 |
GPIO24 |
Raspberry Pi:GPIO24 |
19 |
GPIO10 |
Raspberry Pi:GPIO10 |
20 |
GND |
Raspberry Pi:GND |
21 |
GPIO09 |
Raspberry Pi:GPIO09 |
22 |
GPIO25 |
Raspberry Pi:GPIO25 |
23 |
GPIO11 |
Raspberry Pi:GPIO11 |
24 |
GPIO08 |
Raspberry Pi:GPIO08 |
25 |
GND |
Raspberry Pi:GND |
26 |
GPIO07 |
Raspberry Pi:GPIO07 |
27 |
ID_SD |
Raspberry Pi:ID_SD |
28 |
ID_SC |
Raspberry Pi:ID_SC |
29 |
GPIO05 |
Raspberry Pi:GPIO05 |
30 |
GND |
Raspberry Pi:GND |
31 |
GPIO06 |
Raspberry Pi:GPIO06 |
32 |
GPIO12 |
Raspberry Pi:GPIO12 |
33 |
GPIO13 |
Raspberry Pi:GPIO13 |
34 |
GND |
Raspberry Pi:GND |
35 |
GPIO19 |
Raspberry Pi:GPIO19 |
36 |
GPIO16 |
Raspberry Pi:GPIO16 |
37 |
GPIO26 |
Raspberry Pi:GPIO26 |
38 |
GPIO20 |
Raspberry Pi:GPIO20 |
39 |
GND |
Raspberry Pi:GND |
40 |
GPIO21 |
Raspberry Pi:GPIO21 |
2. LCM PIN Definition (CON5)
Pin |
Symbol |
Function |
1 |
3.3V |
TFT Module Power limit can only output 3.3V,100mA |
2 |
5V |
Raspberry Pi:Power 5V |
3 |
GPIO02 |
Raspberry Pi:GPIO02 |
4 |
5V |
Raspberry Pi:Power 5V |
5 |
GPIO03 |
Raspberry Pi:GPIO03 |
6 |
GND |
Raspberry Pi:GND |
7 |
GPIO04 |
Raspberry Pi:GPIO04 |
8 |
GPIO14 |
Raspberry Pi:GPIO14 |
9 |
GND |
Raspberry Pi:GND |
10 |
GPIO15 |
Raspberry Pi:GPIO15 |
11 |
GPIO17 |
Raspberry Pi:GPIO17 |
12 |
GPIO18 |
Raspberry Pi:GPIO18 (Backlight Enable) |
13 |
GPIO27 |
Raspberry Pi:GPIO27 |
14 |
GND |
Raspberry Pi:GND |
15 |
GPIO22 |
Raspberry Pi:GPIO22 |
16 |
GPIO23 |
Raspberry Pi:GPIO23 |
17 |
3.3V |
TFT Module Power limit can only output 3.3V,100mA |
18 |
GPIO24 |
Raspberry Pi:GPIO24 |
19 |
GPIO10 |
Raspberry Pi:GPIO10 |
20 |
GND |
Raspberry Pi:GND |
21 |
GPIO09 |
Raspberry Pi:GPIO09 |
22 |
GPIO25 |
Raspberry Pi:GPIO25 |
23 |
GPIO11 |
Raspberry Pi:GPIO11 |
24 |
GPIO08 |
Raspberry Pi:GPIO08 |
25 |
GND |
Raspberry Pi:GND |
26 |
GPIO07 |
Raspberry Pi:GPIO07 |
27 |
ID_SD |
Raspberry Pi:ID_SD |
28 |
ID_SC |
Raspberry Pi:ID_SC |
29 |
GPIO05 |
Raspberry Pi:GPIO05 |
30 |
GND |
Raspberry Pi:GND |
31 |
GPIO06 |
Raspberry Pi:GPIO06 |
32 |
GPIO12 |
Raspberry Pi:GPIO12 |
33 |
GPIO13 |
Raspberry Pi:GPIO13 |
34 |
GND |
Raspberry Pi:GND |
35 |
GPIO19 |
Raspberry Pi:GPIO19 |
36 |
GPIO16 |
Raspberry Pi:GPIO16 |
37 |
GPIO26 |
Raspberry Pi:GPIO26 |
38 |
GPIO20 |
Raspberry Pi:GPIO20 |
39 |
GND |
Raspberry Pi:GND |
40 |
GPIO21 |
Raspberry Pi:GPIO21 |
3. HDMI
Pin No. |
Symbol |
I/O |
Function |
1 |
Rx2+ |
I |
+LVDS Differential Data Input |
2 |
GND |
P |
Ground |
3 |
Rx2- |
I |
-LVDS Differential Data Input |
4 |
Rx1+ |
I |
+LVDS Differential Data Input |
5 |
GND |
P |
Ground |
6 |
Rx1- |
I |
-LVDS Differential Data Input |
7 |
Rx0+ |
I |
+LVDS Differential Data Input |
8 |
GND |
P |
Ground |
9 |
Rx0- |
I |
-LVDS Differential Data Input |
10 |
RxC+ |
I |
+LVDS Differential Clock Input |
11 |
GND |
P |
Ground |
12 |
RxC- |
I |
-LVDS Differential Clock Input |
13-14 |
NC |
- |
No connection |
15 |
SCL |
I/O |
DDC(Data Display Channel) Clock |
16 |
SDA |
I/O |
DDC(Data Display Channel) Data |
17 |
GND |
P |
Ground |
18 |
5V |
P |
Power Supply |
19 |
Detect |
I/O |
Hot plug detect |
I: input, O: output, P: Power
4. USB
Pin No. |
Symbol |
I/O |
Function |
1 |
5V |
P |
Power Supply |
2 |
D- |
I/O |
USB Data - |
3 |
D+ |
I/O |
USB Data + |
4 |
NC |
- |
No connection |
5 |
GND |
P |
Ground |
5. POWER JACK
Pin No. |
Symbol |
I/O |
Function |
1 |
5V |
P |
Power Supply (5V) |
2 |
GND |
P |
Ground |
3 |
NC |
|
No connection |
